-16*10/100m poe rj45 ports
-1* 10/100/1000m adaptive rj45 port
-1*multiplexed gigabit sfp fiber module expansion slot
-ports 1~16 support poe power supply
-motion detection identifies pd devices that comply with the ieee 802.3at/af standard
-power up to 30w per poe port
|

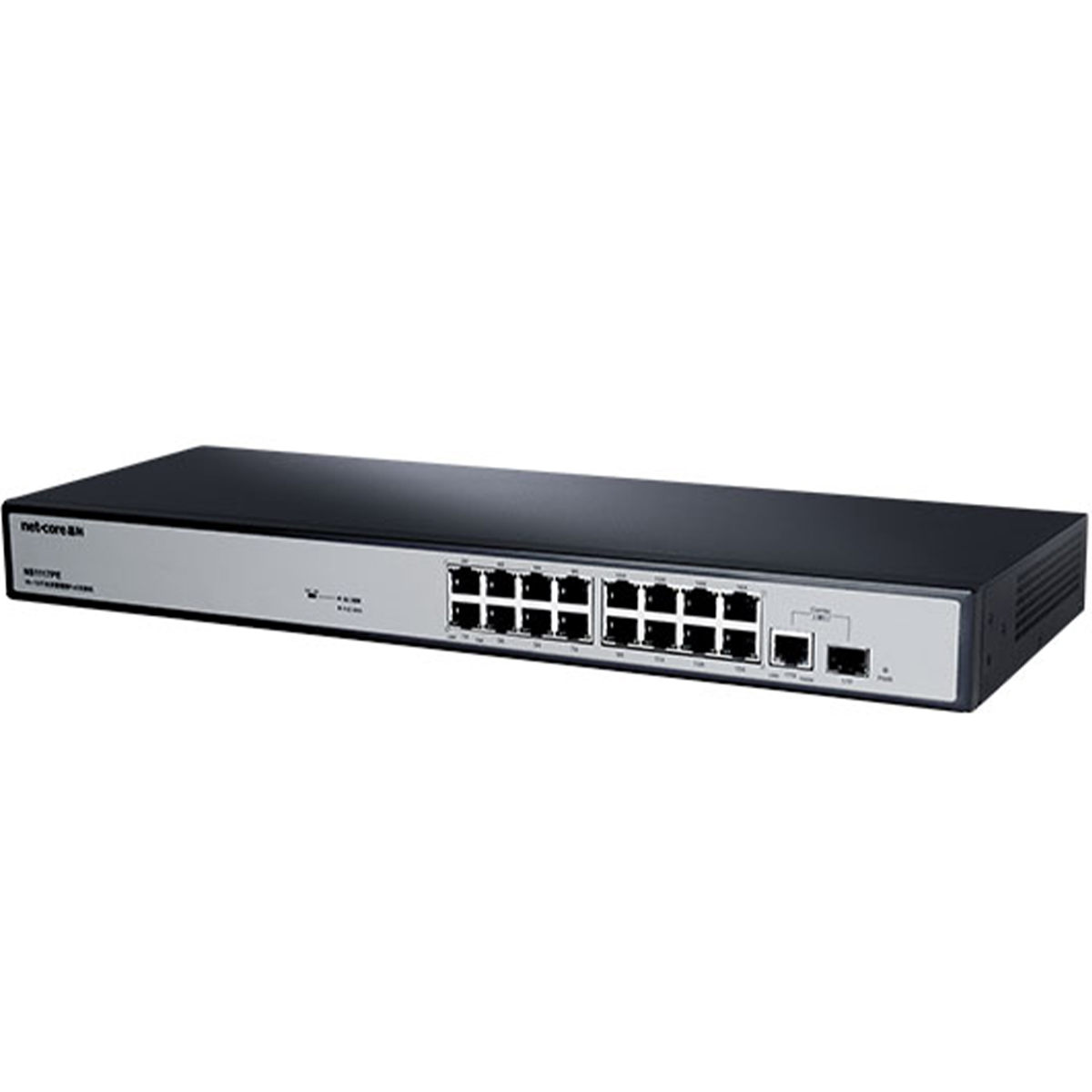

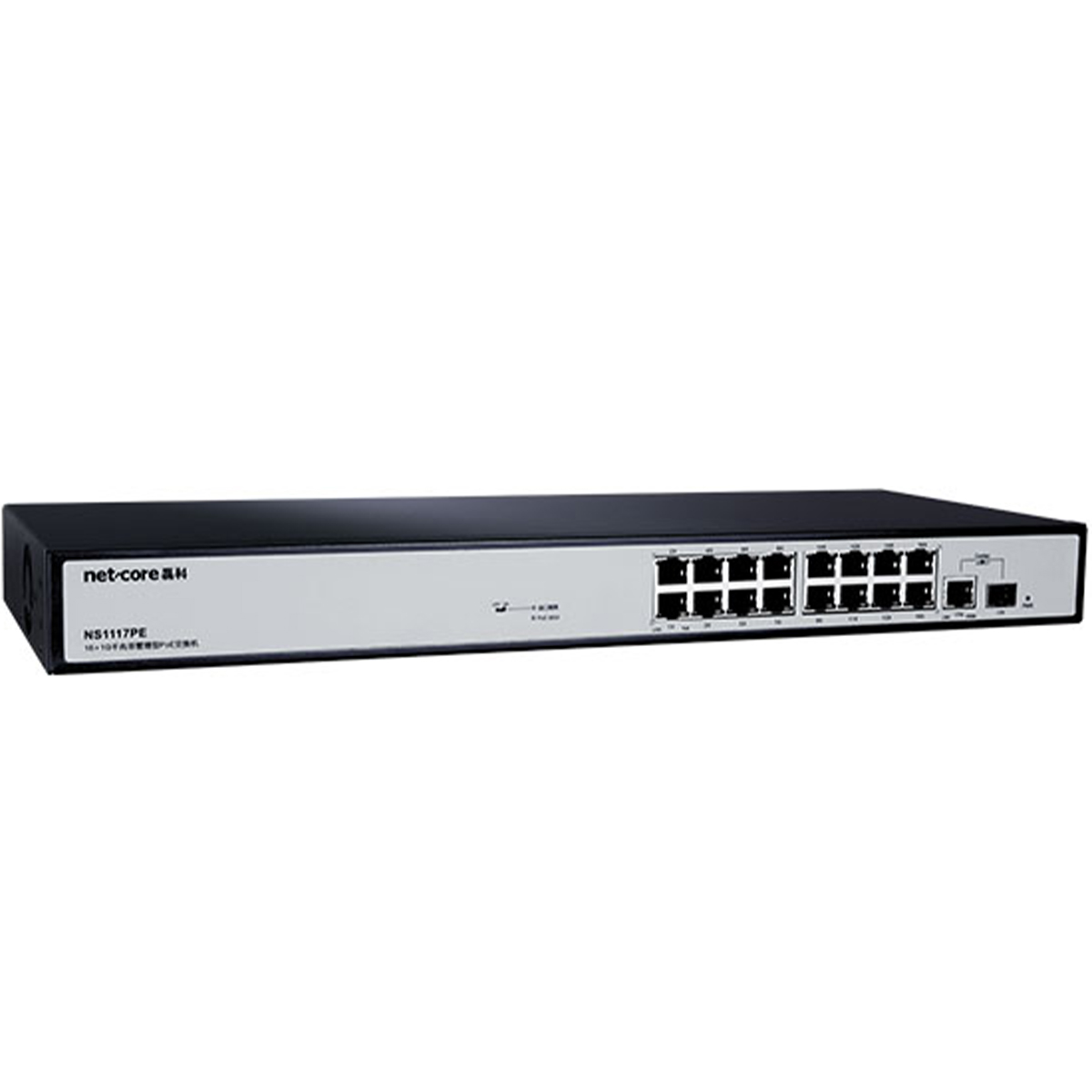

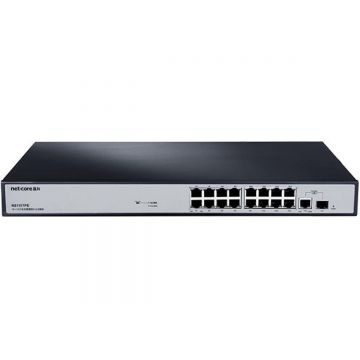

product model |
ns1117pe |
| standard protocol | iieee802.3 10base-t ethernet standard ieee802.3u 100base-tx fast ethernet standard ieee802.3ab 1000base-t ethernet standard eee802.3z gigabit ethernet (optical) ieee802.3x full-duplex flow control and backpressure half-duplex flow control ieee802.3ad link aggregation ieee802.3at/af power over ethernet standard |
| port |
16*10/100m poe rj45 port 1*multiplexed gigabit sfp fiber module expansion slots |
| forwarding mode | store and forward |
| backplane bandwidth |
5.2gbps |
| mac address table | 8k |
| pwr、sys、poe max、link/act、1000m、port isolation | |
| size | 440*220*44mm（l*w*h） |
| power | 100-240v ac，50/60hz |
| working environment |
operating temperature: 0°c ~ 40°c storage temperature: -40°c ~ 70°c operating humidity: 10% ~ 90%, rh non-condensing storage humidity: 5% ~ 90%, rh non-condensing |
| network medium | 10base-t: cat3 and above unshielded/shielded twisted pair (≤100m)
100base-tx: cat5 and above unshielded/shielded twisted pair (≤100m) 1000base-tx: cate5 and above unshielded/shielded twisted pair (≤100m) |
