-ports 1 and 2 are uplink ports by default
-ports 3~8 support non-standard poe power supply
-with overcurrent protection, the power supply is automatically disconnected when the port current is too large
-supports fixed vlan (port isolation) function
|

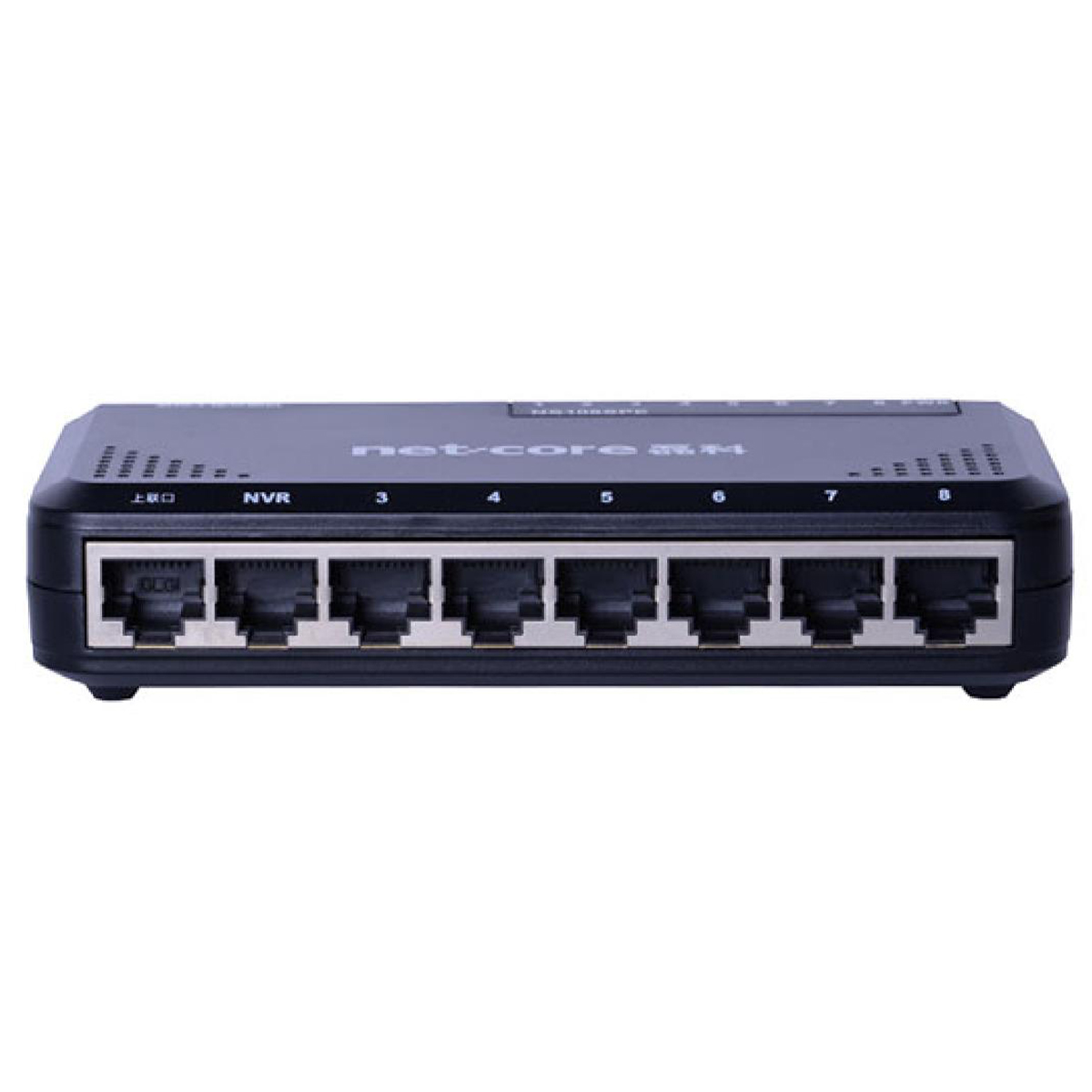

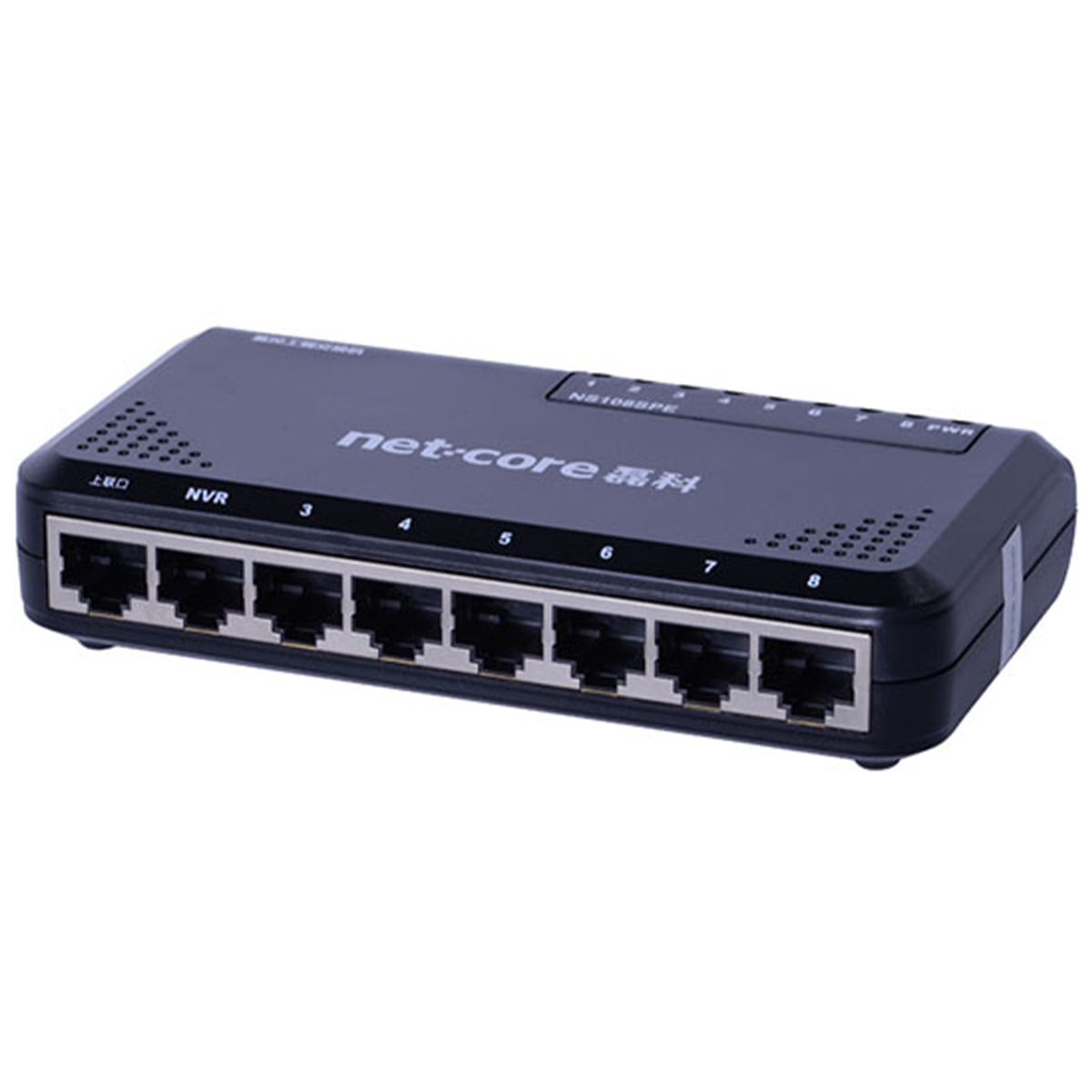

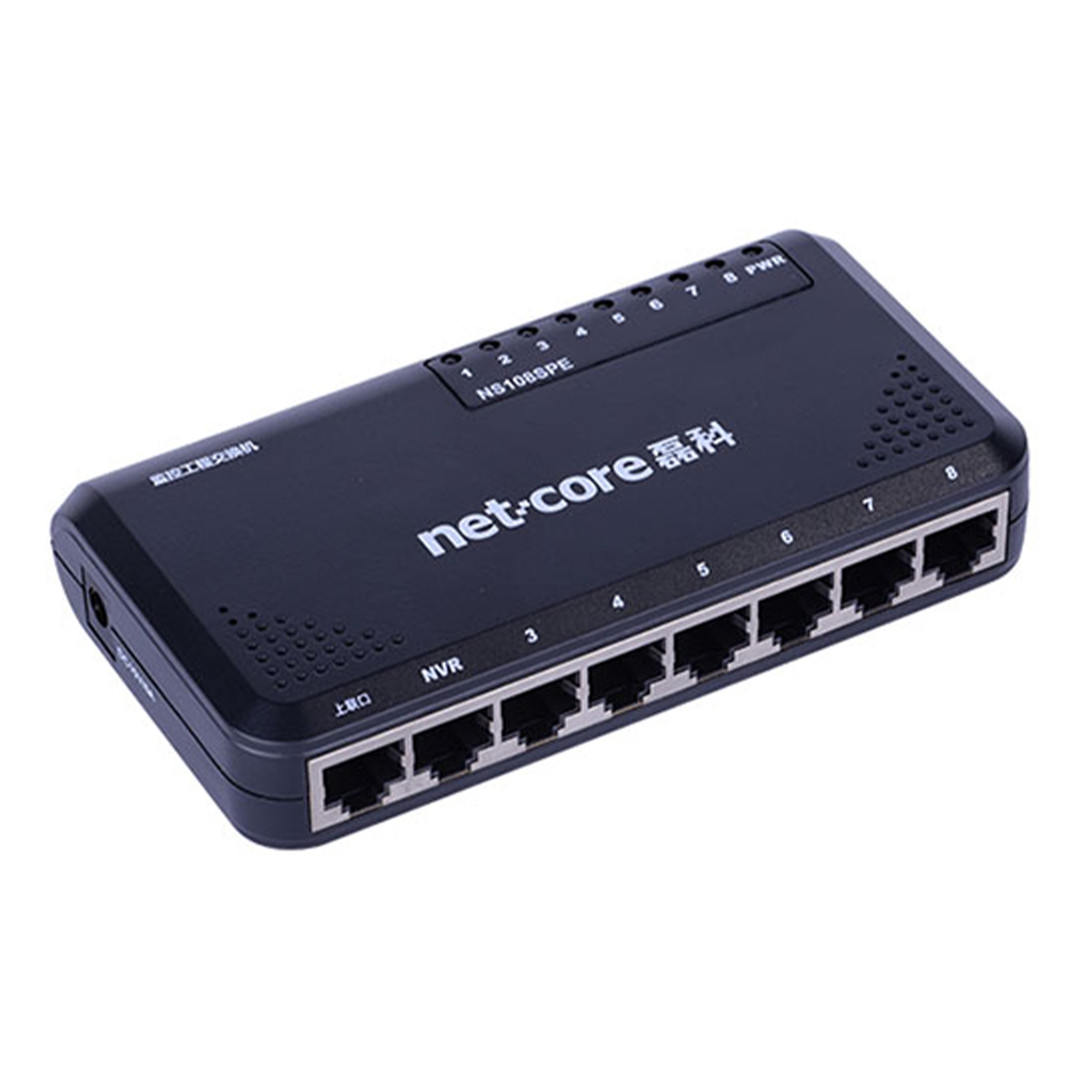

product model |
ns108spe |
| standard protocol | ieee 802.3、ieee 802.3u、ieee 802.3x、ieee802.3at/af |
| port |
8*10/100m poe rj45 port |
| forwarding mode | store and forward |
| forwarding rate | 10/100mbps |
| backplane bandwidth |
1.6gbps |
| mac address table | 8k |
| access method | csma/cd |
| size | 131mm(l)* 171.17mm(w)* 26mm (h) |
| power | 15v/6a |
| working environment |
operating temperature: 0°c ~ 40°c storage temperature: -40°c ~ 70°c operating humidity: 10% ~ 90%, rh non-condensing storage humidity: 5% ~ 90%, rh non-condensing |
