1. follow ieee 802.3 ethernet and ieee 802.3u fast ethernet protocols
2. all ports support auto flip (auto mdi/mdi-x) function
3. iron shell design for better heat dissipation

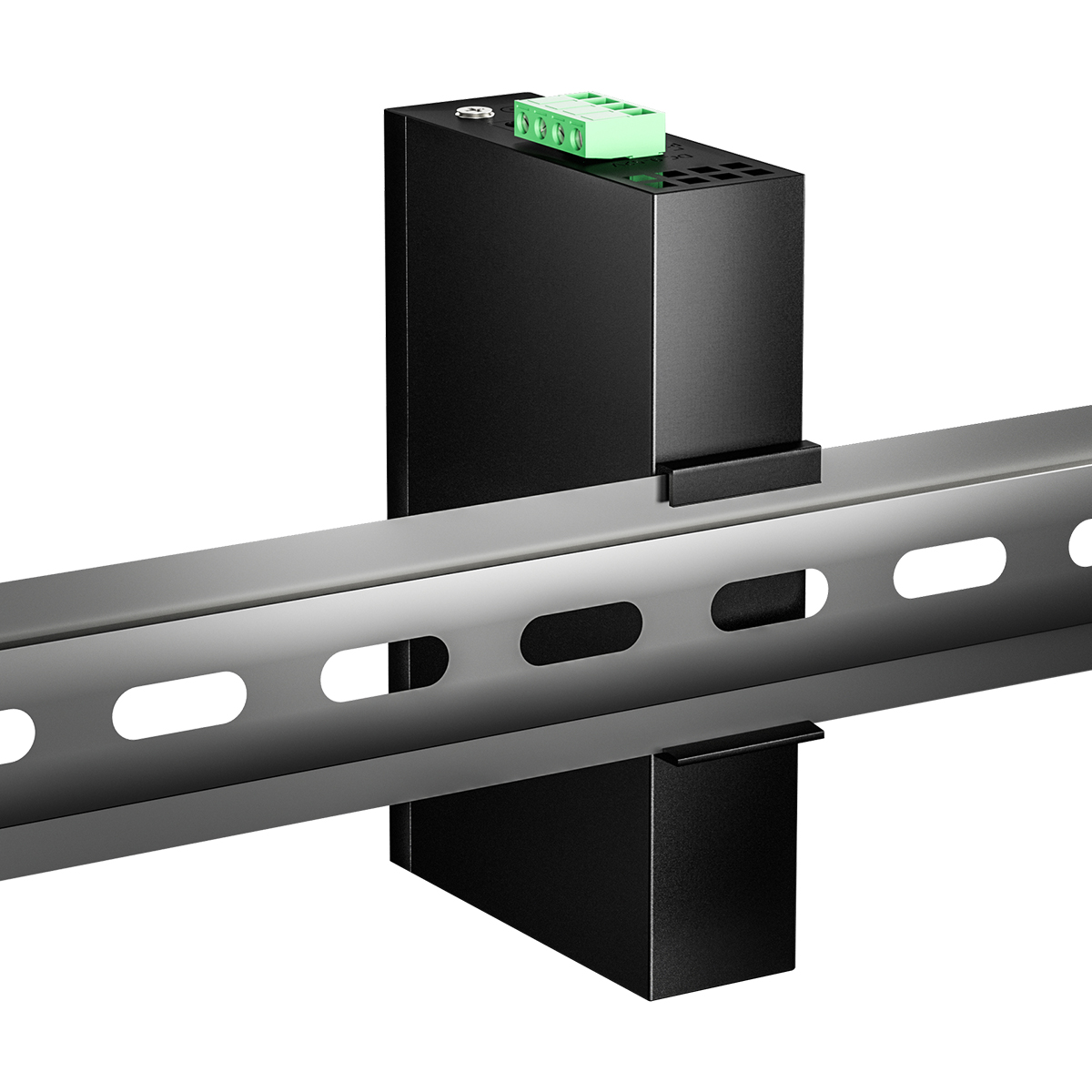

4. din rail design supports the installation of weak current boxes for industrial control
5. redundant power supply design, supports simultaneous 3-way power input, mutual backup, safe and reliable
6. anti-reverse connection of power supply, 3-way input support positive and negative polarity reverse connection

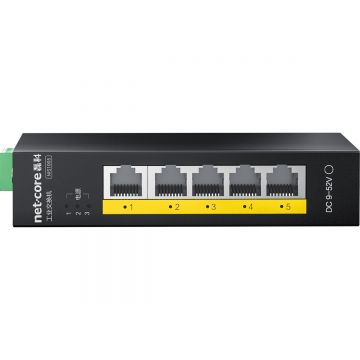

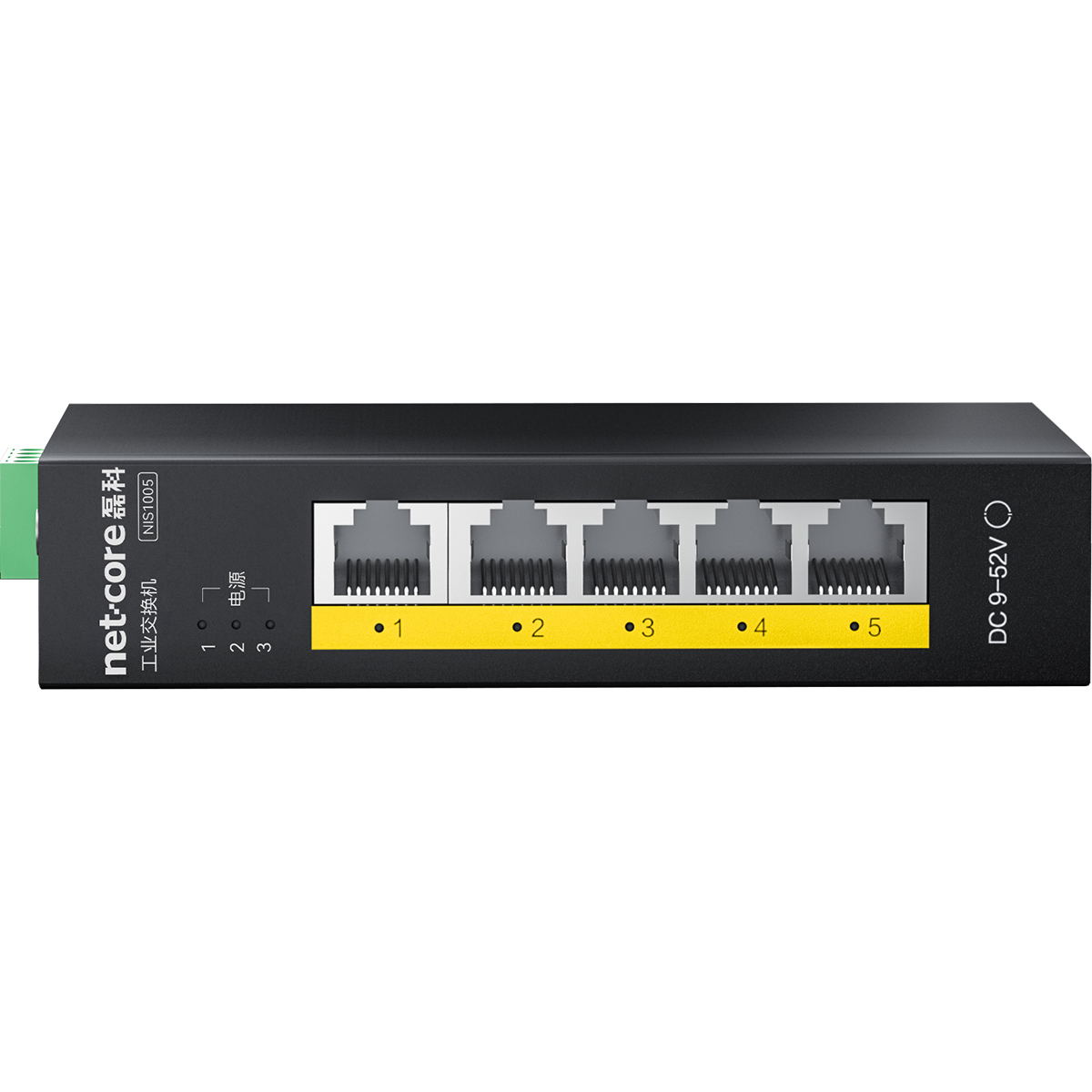

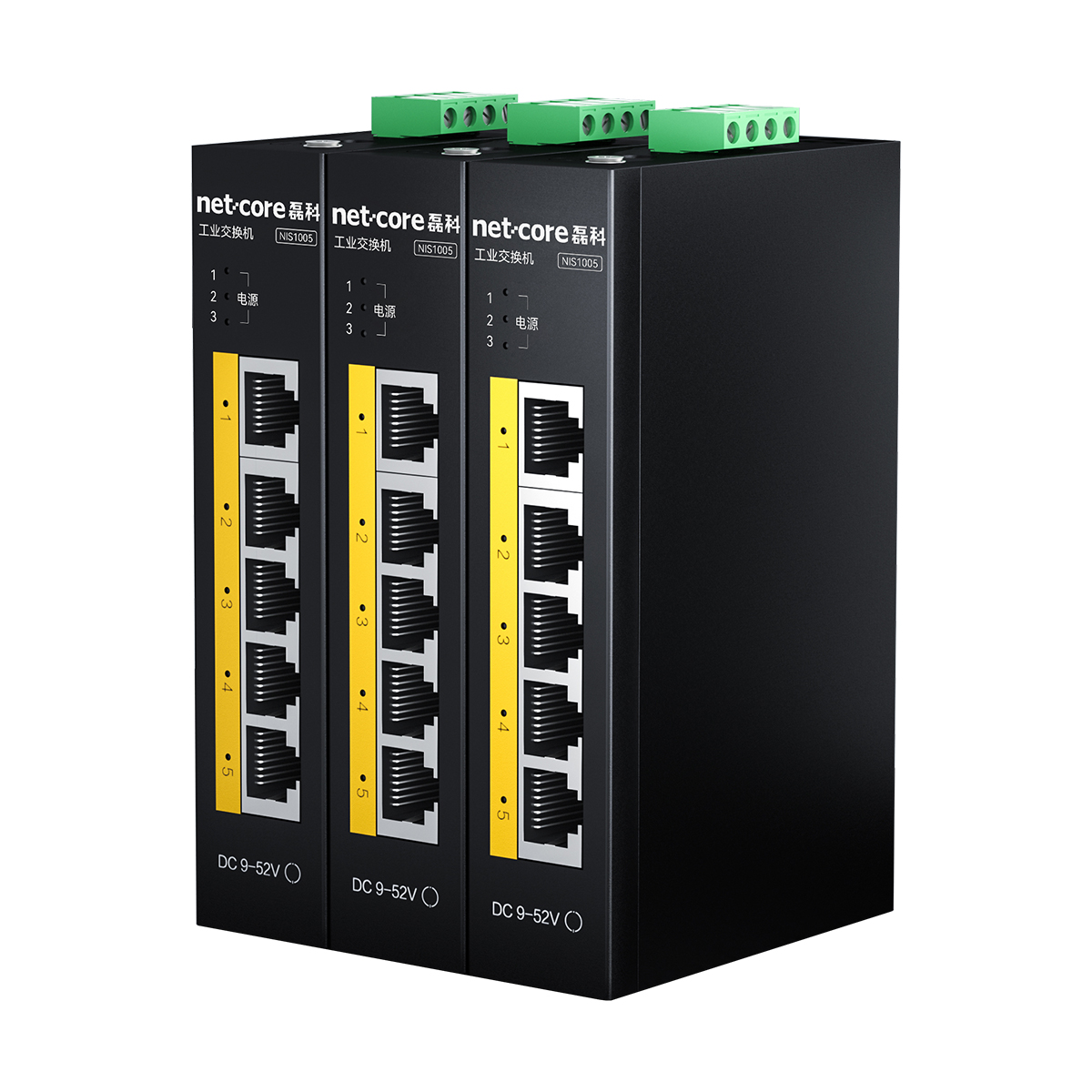

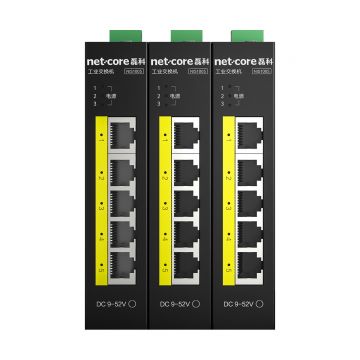

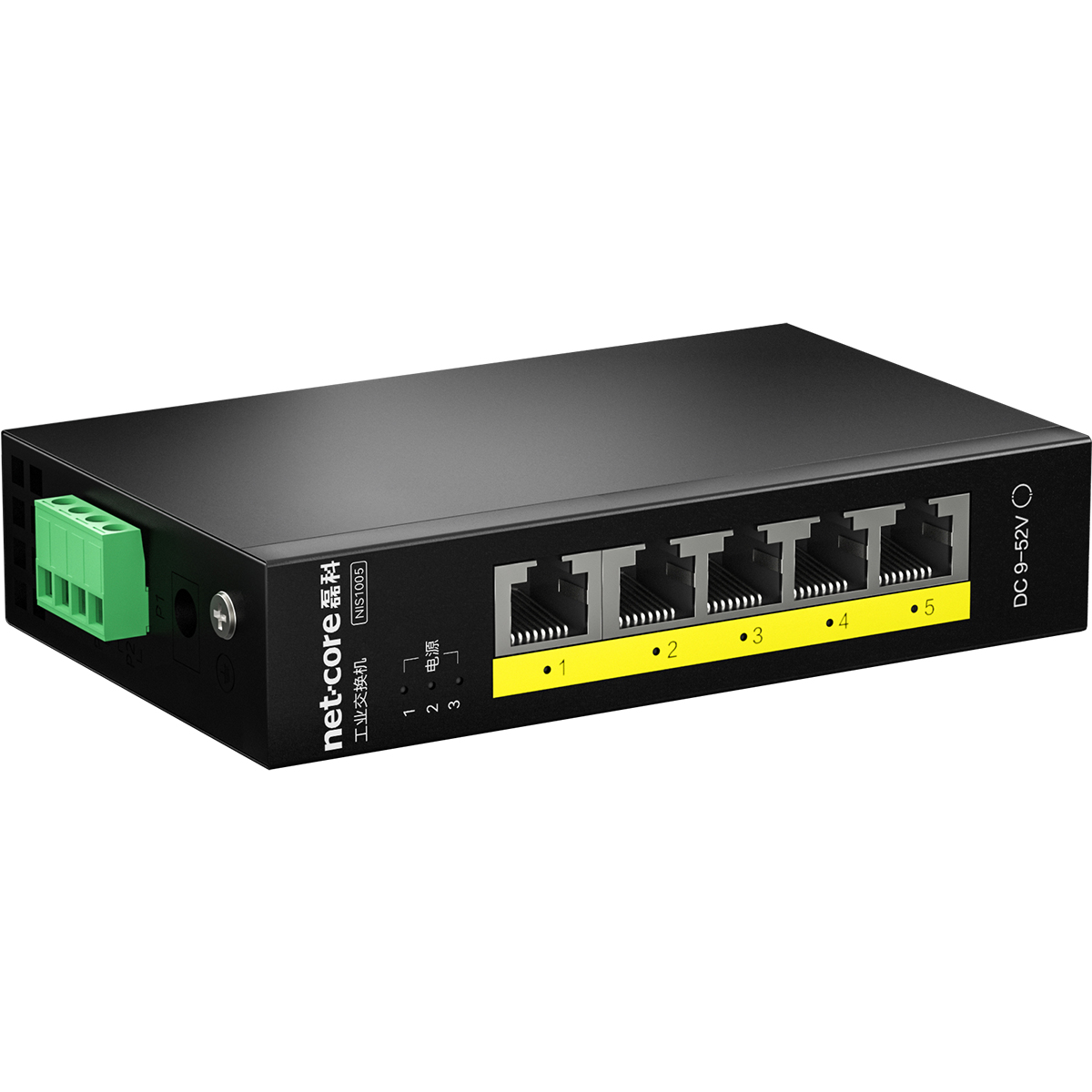

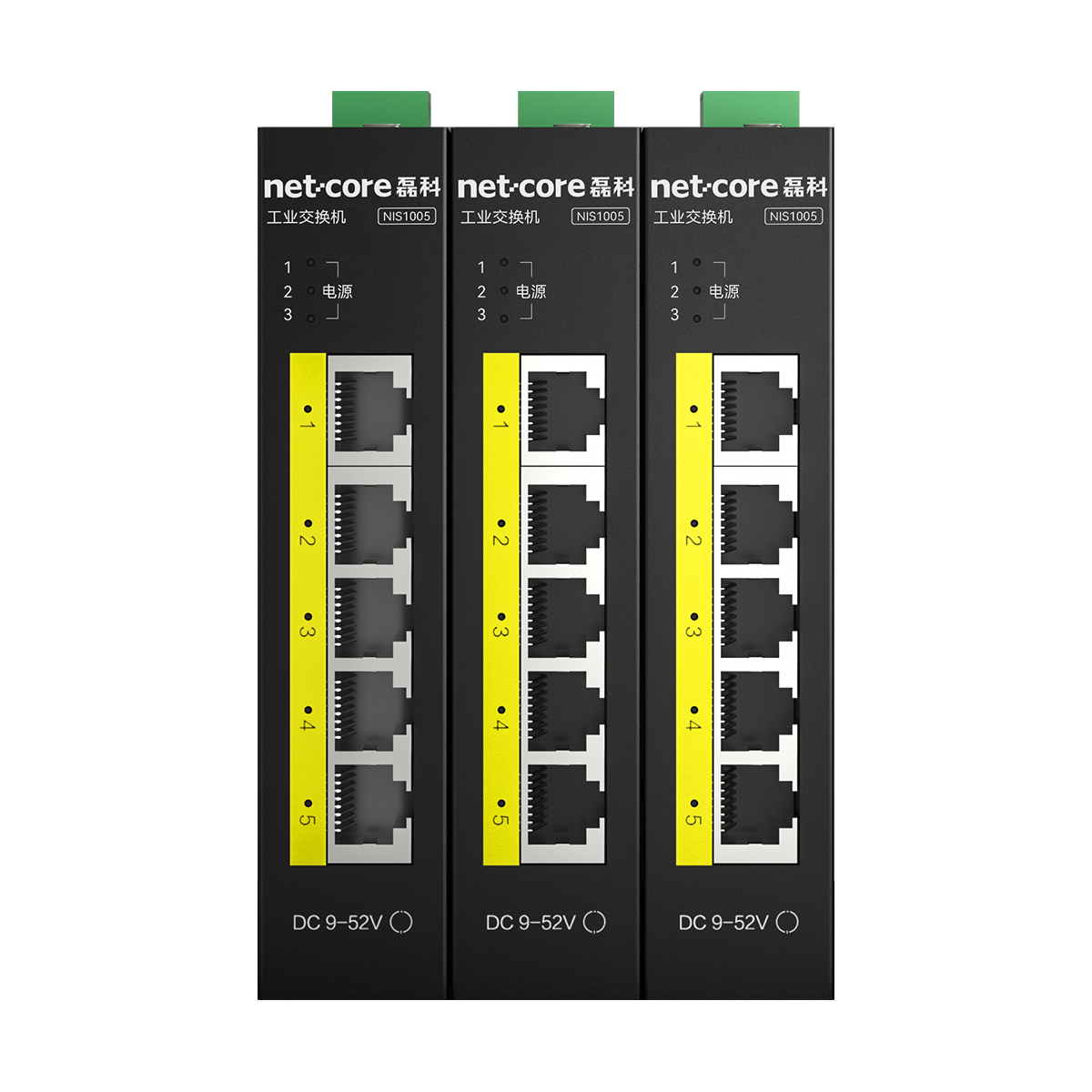

| product model | nis1005 |
| port | 5*100mbps rj45 port |
| backplane bandwidth | 1g |
| mac address table | 2k |
| power supply | all three channels support 9-52v dc input, prevent reverse connection |
| network medium |
100base-tx: 2 cat5 or above utp/stp (≤100m) 10base-tx: 2 cat5 or above utp/stp (≤100m) |
| size | 132mm*80mm*27mm |
| working environment |
operating temperature: -40°c ~ 75°c storage temperature: -45°c ~ 85°c operating humidity: 10% ~ 90%, rh non-condensing storage humidity: 5% ~ 90%, rh non-condensing |
| basic functions | compliant with ieee 802.3 ethernet and ieee802.3u fast ethernet protocol standards compatible with ieee 802.3af/at compliant powered devices (pd) compatible with certified non-standard powered devices (pd) store and forward mac automatic learning and aging ieee802.3x full-duplex flow control and backpressure half-duplex flow control |
| standards and protocols | ieee 802.3 ethernet media access control protocol ieee 802.3i 10base-t ethernet ieee 802.3u 100base-tx fast ethernet ieee 802.3x flow control |
| system mode | ordinary (default working mode) |
| data transfer | ethernet 10mbps half duplex, 20mbps full duplex fast ethernet 100mbps half duplex, 200mbps full duplex |
