enterprise class configuration, 1.6ghz (dual core)main chip, 128m large memory
1-4 variable wan ports, load balancing strategy brings better broadband overlay effect
6 high-gain omnidirectional antennas, accommodate 120 devices for stable internet access
qos upstream/downstream traffic management
wechat remote management, safer and more convenient
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

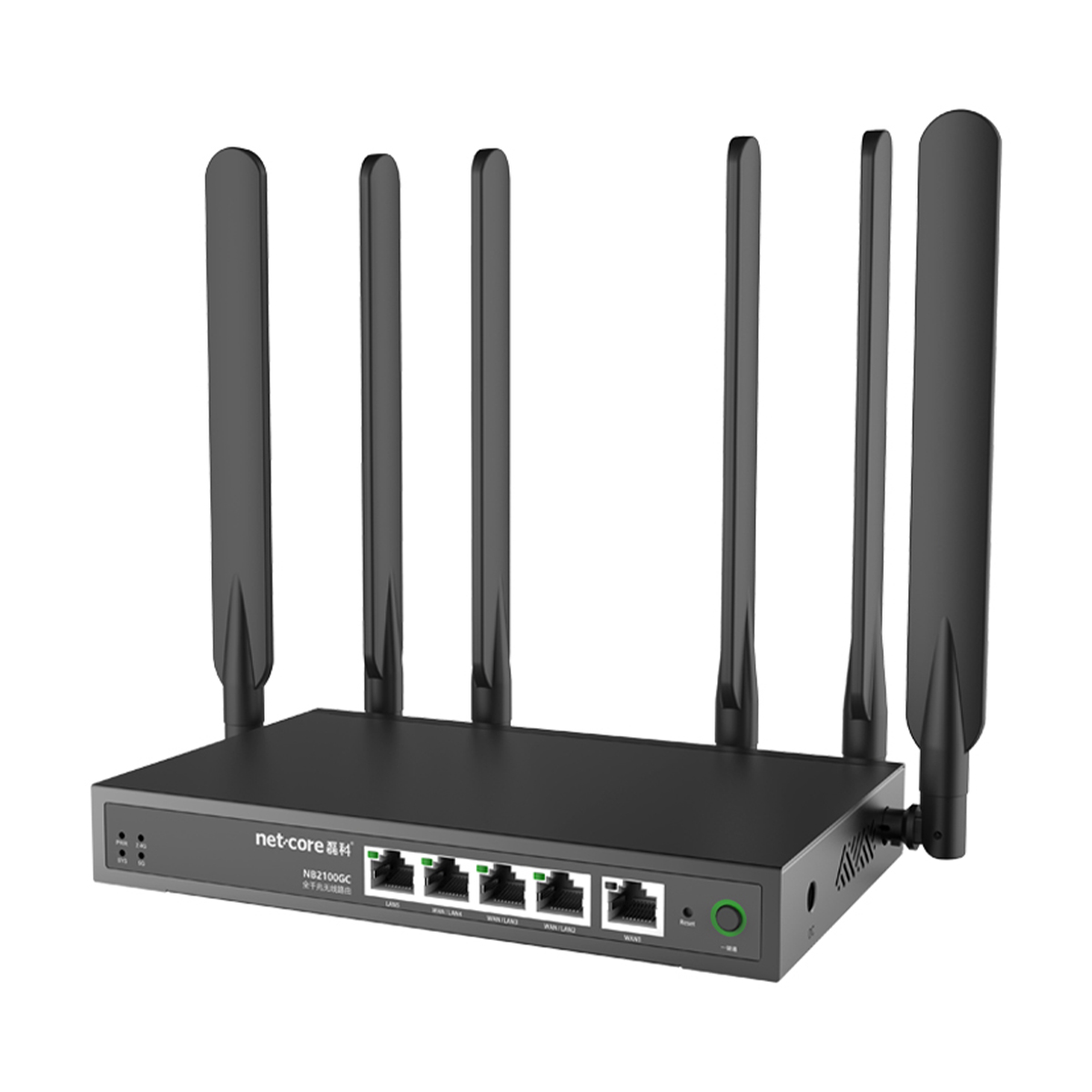

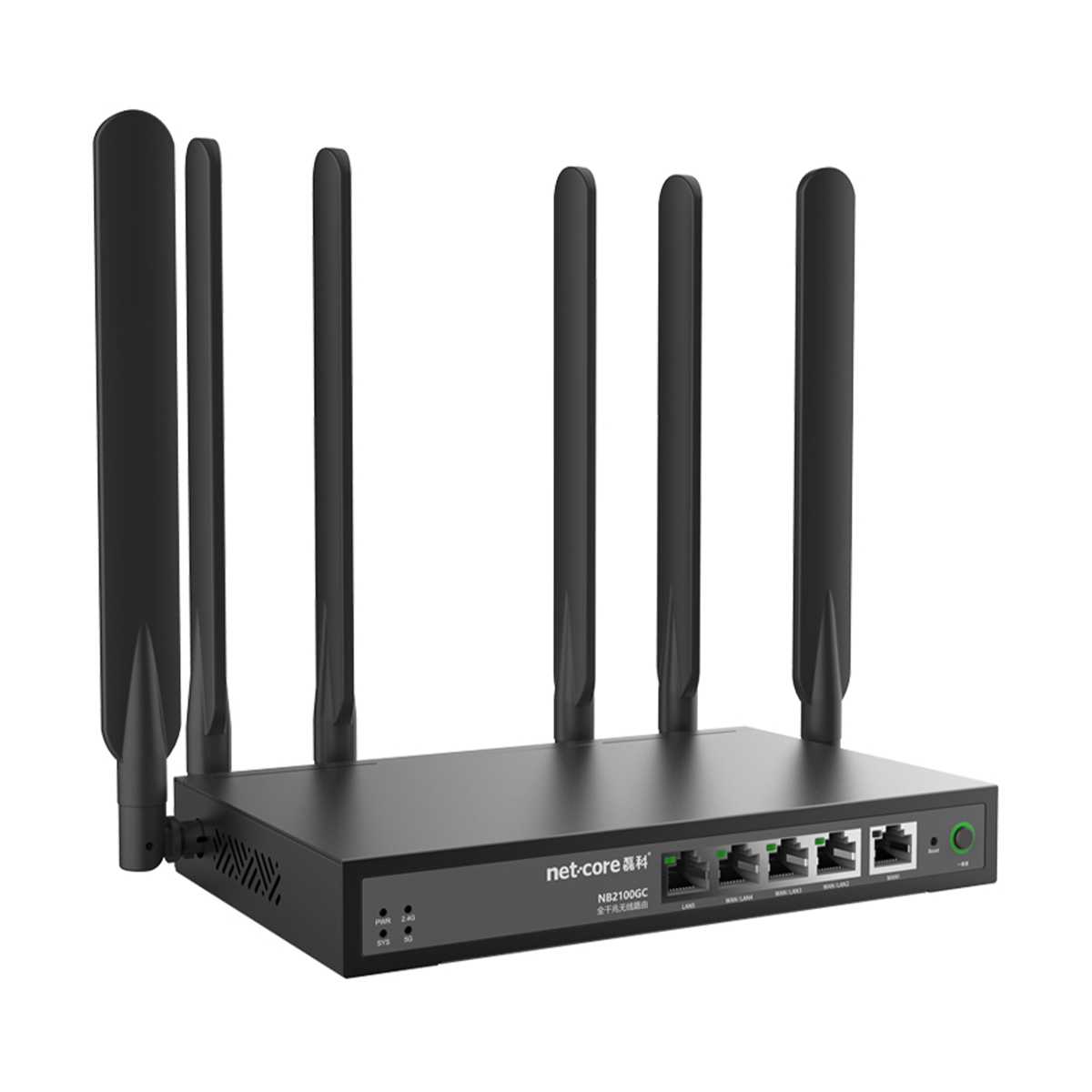

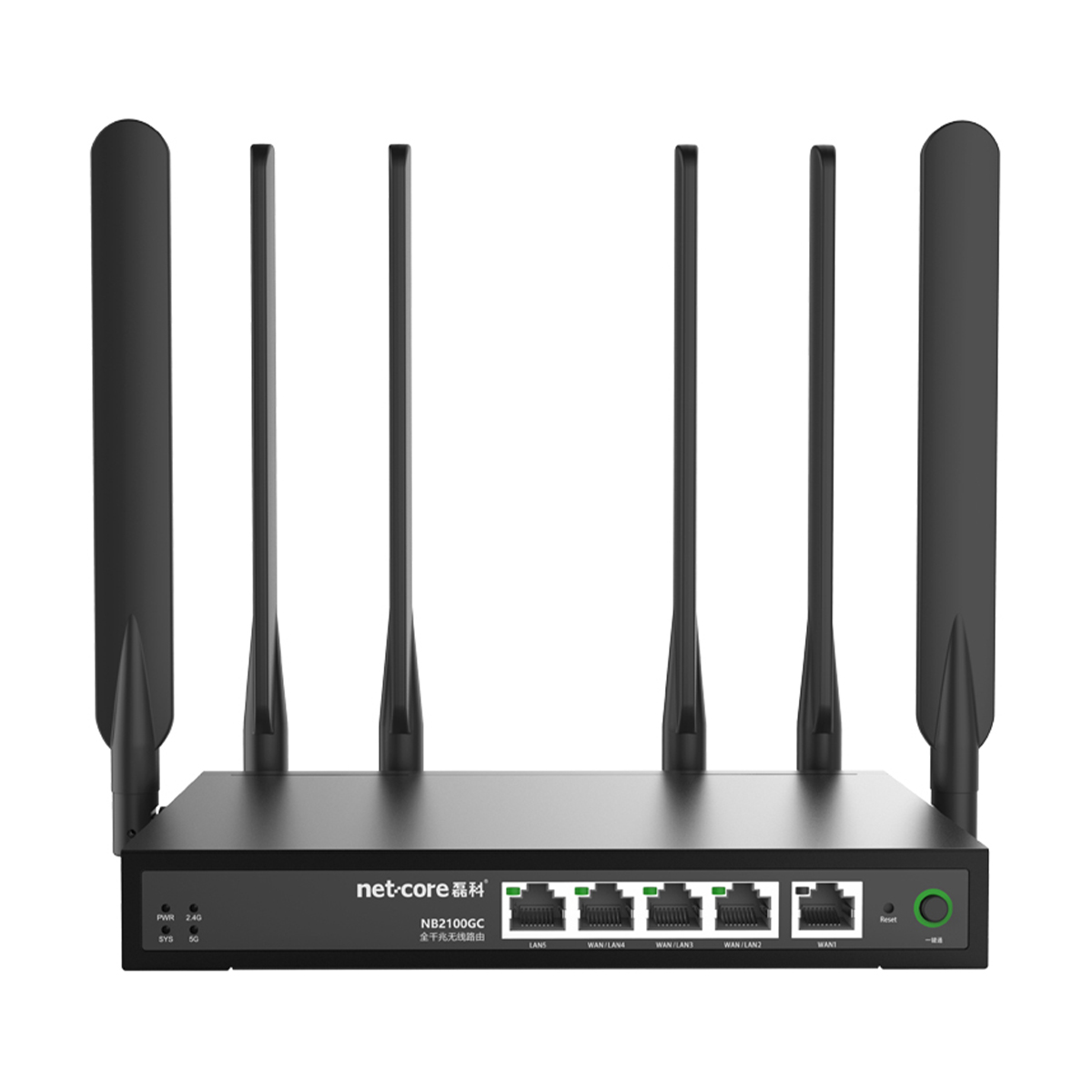

| product model | nb2100gc |
| wireless protocol | ieee802.3,ieee802.3u,ieee802.3z ,ieee802.3x,ieee802.1x,ieee802.11 b/g/n/ac |
| port |
lan：4*10/100/100/1000m auto mdi/mdix rj45 ports |
| forwarding rate | 10/100/1000mbps |
| cpu | 1.6ghz(dual core) |
| flash | 16mb |
| memory | 128mb |
| wireless band | 2.4ghz：300mbps；5gghz：1734mbps |
| antennas | 6 high-gain omnidirectional antennas |
| led indicator | pwr、sys、2.4g、5g、port status |
| button | 1×reset，1×push to talk |
| size |
200mm×124.4mm×28mm |
| power | 9v/1.5a |
| operating environment | operating temperature: 0°c ~ 40°c
storage temperature: -20°c ~ 70°c operating humidity: 10% ~ 90%, non-condensing storage humidity: 5% ~ 90%, non-condensing |
| common functions | multi-wan port access (support dynamic ip/pppoe/static ip dial-up mode, wan port automatically detects the access type) one key speed test store scene settings wechat to wi-fi one-click switch child mode, worry-free parent control one-click sos to restore user configuration smart qos dhcp service wisp universal relayport mapping peanut shell domain name access device monitoring pptp/l2tp client |
| security | malicious url blocking
lan attack defense anti-wi-fi squatter intrusion blacklist management |
| basic settings |
system upgrade restart router reset dial log |
| other | wechat management emergency recovery |
